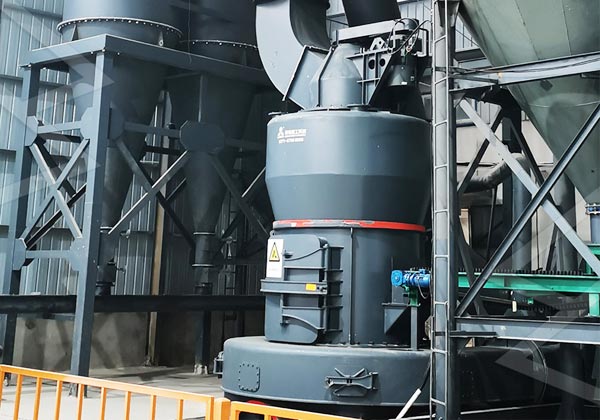

Raymond mill is a commonly used grinding equipment for limestone grinding. It is a high-efficiency and high-precision milling equipment developed by combining the characteristics of domestic and foreign limestone mills. In the process of using Raymond mill for limestone grinding, power calculation plays a crucial role in determining the overall efficiency and energy consumption of the mill.
Power calculation for a Raymond mill involves several factors that need to be considered. These factors include the grinding capacity, fineness of the finished product, grinding efficiency, and specific energy consumption.
- Grinding Capacity: The grinding capacity refers to the maximum amount of material that can be processed by the Raymond mill within a certain time period. It is typically measured in tons per hour (t/h) or kilograms per hour (kg/h). The grinding capacity is influenced by factors such as the size and hardness of the limestone feed, the feed rate, and the operating parameters of the mill.
- Fineness of the Finished Product: The fineness of the finished product refers to the particle size distribution and the percentage of particles within a specific range. It is usually expressed as a percentage passing through a certain mesh size. The desired fineness of the limestone product will depend on the application and requirements. Finer grinding requires more energy and may reduce the overall mill capacity.
- Grinding Efficiency: Grinding efficiency is a measure of how effectively the Raymond mill can grind the limestone into the desired fineness. It is influenced by various factors such as the grinding media (in this case, the grinding rollers and grinding ring), the mill speed, the air flow rate, and the feed rate. Higher grinding efficiency results in a lower specific energy consumption.
- Specific Energy Consumption: Specific energy consumption is a measure of the energy required to grind a unit mass of limestone to a specific fineness. It is typically expressed in kilowatt-hours per ton (kWh/t) or kilojoules per kilogram (kJ/kg). The specific energy consumption depends on the grinding efficiency, feed size, feed rate, and other operational parameters of the mill.
To calculate the power consumption of a Raymond mill for limestone grinding, you can use the following steps:
Step 1: Determine the grinding capacity required. This can be based on the desired production rate or the amount of limestone that needs to be processed within a specific time period.
Step 2: Determine the fineness of the finished product. Specify the desired percentage passing through a certain mesh size or any other suitable parameter.
Step 3: Measure or estimate the grinding efficiency of the Raymond mill. This can be done through experimental testing or by referring to the manufacturer’s data.
Step 4: Calculate the specific energy consumption. This involves dividing the power consumption by the grinding capacity or the mass of limestone processed.
Step 5: Calculate the power consumption. Multiply the specific energy consumption by the grinding capacity to obtain the power consumption in kilowatts (kW) or horsepower (HP).
It is important to note that the power calculation for a Raymond mill is an approximation and may vary depending on the specific mill design, operating conditions, and limestone characteristics. Consulting the manufacturer’s guidelines and conducting pilot tests is recommended for accurate power calculations.
