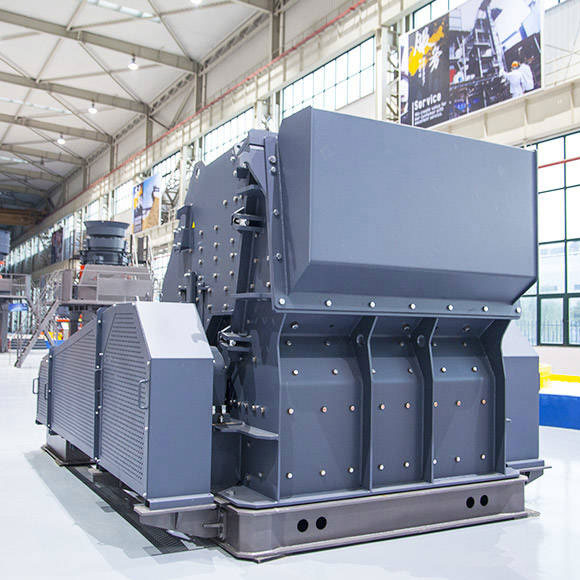

CI5X Series Impact Crusher is the new generation of high-efficiency coarse and medium-fine crushing equipment.This crusher integrates many technology achievements including high-accuracy rotor, multifunctional hydraulic operating system and efficient involute crushing cavity, is the upgrade of conventional crusher.
Product Features: Integration of latest scientific achievements, heavy-duty rotor with big rotary inertia and high precision, higher crushing efficiency
Input Size: 0-1300mm
Capacity: 250-2000TPH
Material: Limestone, feldspar, calcite, talc, barite, dolomite, kaolin, gypsum, graphite, etc.
Advantages of CI5X Series Impact Crusher：
1. Integrated Application Of Latest Scientific Research Achievements;
2. Higher Crushing Efficiency – Heavy-duty Rotor with Strong Rotary Inertia and High Precision;
3. Multifunctional Hydraulic Operational System Improving Working Efficiency;
4. Involute Crushing Chamber Ensuring Shape of Finished Products;
5. Efficient working, easy maintenance.
Working Principle of CI5X Series Impact Crusher：
CI5X Series Impact Crusher breaks materials with impact force. When materials enter the working area of hammer, they may be crushed under the high-speed shock and then thrown onto the impact device above the rotor for another crushing. Next, materials bounce from the lining plate to the working area of hammer again. This process repeats continuously until materials reach qualified granularity and are discharged. Adjusting the gap between the impact rack and the rotor rack can change the granularity and shape of finished products. Behind the impact plate is a spring safety device. When unbreakable materials enter the crushing chamber, the impact rack goes backwards to discharge unbreakable materials out of the crusher.
Specifications – Technical Data
